NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN1027V

Product
Application

ROTOR DISC » RN1027V

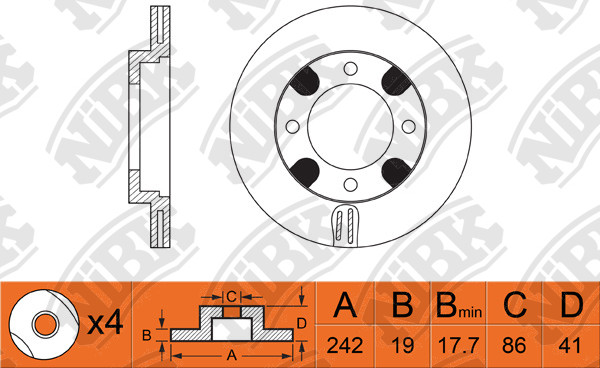

Specification

Type

Vented

Disc Thickness (Max)

19

Num. of holes

4

Height

41

Centering Diameter

86

Front/Rear

Front

Outter Ø

242

Pitch Circle Ø

104

Drum Ø:

119.5

Disc Thickness (Min)

17.5

Structure Material

G3000

Hole Ø:

M10x1.25

Cross Reference

BENDIX

561521B

BENDIX EUR

561521B

HYUNDAI

5171221350

HYUNDAI

5171221B00

HYUNDAI

5171224100

years	Eng	Eng No	BodyBody	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

HYUNDAI » Accent

04.94~08.99	1300	G4EH	X3	RN1027V	PN0091	DN1469 DN1466	FN11162
04.02~06.06	1500	D3DA	C#	RN1027V	PN0091		FN11909
09.99~10.02	1500	G4#K	CF	RN1027V	PN0091		FN11909
09.99~10.02	1500	G4#K	CG	RN1027V	PN0091	DN1471 DN1473	FN11909 FN11189
04.94~08.99	1500	G4EK	4DR SDN LHD	RN1027V	PN0091	DN1469 DN1466	FN11162
04.94~08.99	1500	G4EK	4DR SDN RHD	RN1027V	PN0091	DN1466 DN1469	FN11162
04.94~08.99	1500	G4EK	5DR HB LHD	RN1027V	PN0091	DN1466 DN1469	FN11162
04.94~08.99	1500	G4EK	5DR HB RHD	RN1027V	PN0091	DN1469 DN1466	FN11162

HYUNDAI » Accent (USA)

01.00~01.04

1600

G4ED-G

LC

RN1027V

PN0091

FN11909

HYUNDAI » Pony

09.94~12.99	1300	G4EH	X2	RN1027V	PN0091		FN11162
09.94~12.99	1500	G4EK	X2	RN1027V	PN0091		FN11162
09.94~12.99	1500	G4EK	X3	RN1027V	PN0091		FN11162

HYUNDAI » S-Coupe

09.92~06.96

1500

G4EK

VE3N

RN1027V

PN0091

DN1500

FN11162
