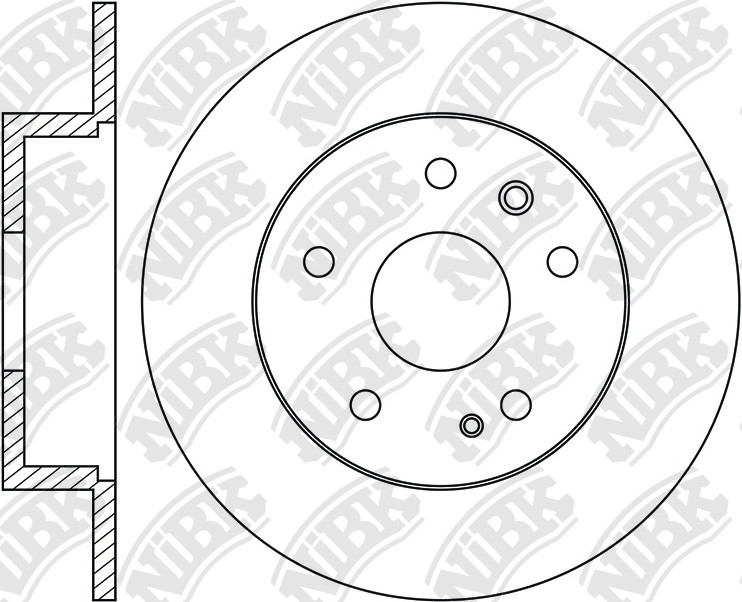

ROTOR DISC » RN1016

Specification

Type
Solid
Disc Thickness (Max)
12
Num. of holes
5
Height
61
Centering Diameter
75
Front/Rear
Rear
Outter Ø
324
Disc Thickness (Min)
10.4
Pitch Circle Ø
120
Drum Ø:
180

Cross Reference

BENDIX
561554B
BMW
34 21 6 757 749
BMW
34211157953
BMW
34211159900
BMW
34216757748
OEM
34211159953
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
04.96~11.01 2500 M51D25 E38 RN1993V PN0165 RN1016 PN0225 FN0527
11.95~09.01 2800 M52286S2 E38 PN0165 RN1016 PN0225 FN0527
08.95~10.01 2800 M52B28 E38 RN1993V PN0165 RN1016 PN0225 FN0527
08.98~11.01 2900 M57D30(306D1) E38 RN1993V PN0165 RN1016 PN0225 FN0527
11.95~09.01 3000 M60358S2 E38 PN0165 RN1016 PN0225 FN0527
07.93~03.96 3000 M60B30(308S1) E38 RN1993V PN0165 RN1016 PN0225 FN0527
03.96~07.01 3500 M62B35 E38 RN1993V PN0165 RN1016 PN0225 FN0527
03.94~02.96 4000 M60B40(408S1) E38 PN0401 RN1016 PN0225 FN0527
02.96~07.01 4400 M62B44(448S) E38 PN0401 RN1016 PN0225 FN0527
04.89~10.94 5000 M70B50 E31 PN0401PN0165 RN1016 PN0225 FN0527

Exemption from liability: the catalog data is advisory and can be used for reference only
