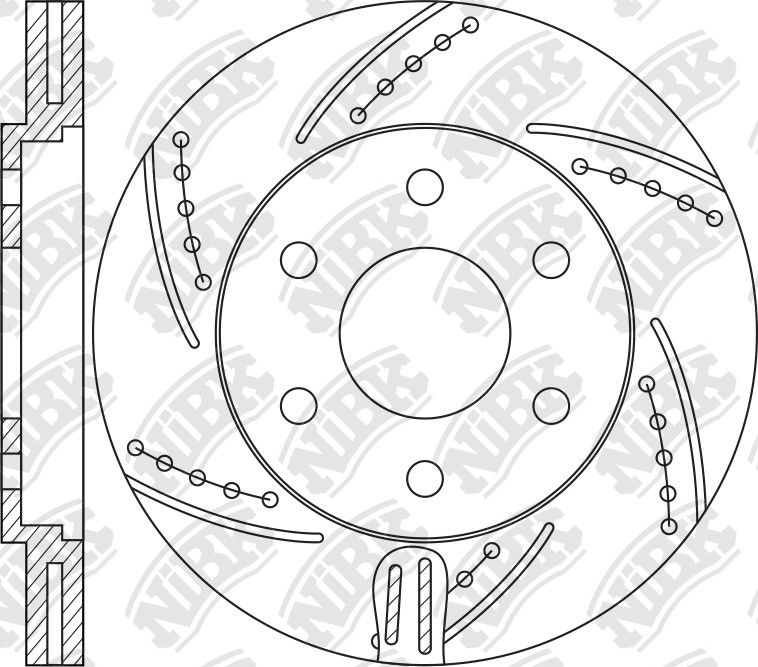

PERFORMANCE ROTOR DISC » RN1615DSET

RN1615DSET

Specification

Type 1:
Direction Vented
Outter Ø
350
Num. of holes
6
Disc Thickness (Max)
30
Disc Thickness (Min)
28
Height
43
Centering Diameter
90
Pitch Circle Ø
139.7
Drum Ø:
185
Structure Material
GG20

Variation

RN1615V[NiBK]

Cross Reference

NISSAN
40206-1LA1A
NISSAN
40206-1LA2A
NISSAN
40206-1LA2B
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

INFINITI   »   QX56

03.10~06.13 5600 VK56VD Z62 RN1615V PN0841PN0555 RN1495V PN0554 FN0654

INFINITI   »   QX80

11.13~11.17 5600 VK56VD Z62 RN1615V PN0841 RN1495V PN0554 FN0654
11.17~03.23 5600 VK56VD Z62 RN1615V PN0841 RN1495V PN0554 FN0654

NISSAN   »   Armada (USA)

06.16~08.24 5600 VK56VD Y62 RN1615V PN0841 RN1495V PN0554 FN0654

NISSAN   »   Patrol

01.10~ 5600 VK56VD Y62 RN1615VRN1494V PN0555PN0841 RN1495V PN0554 FN0654
