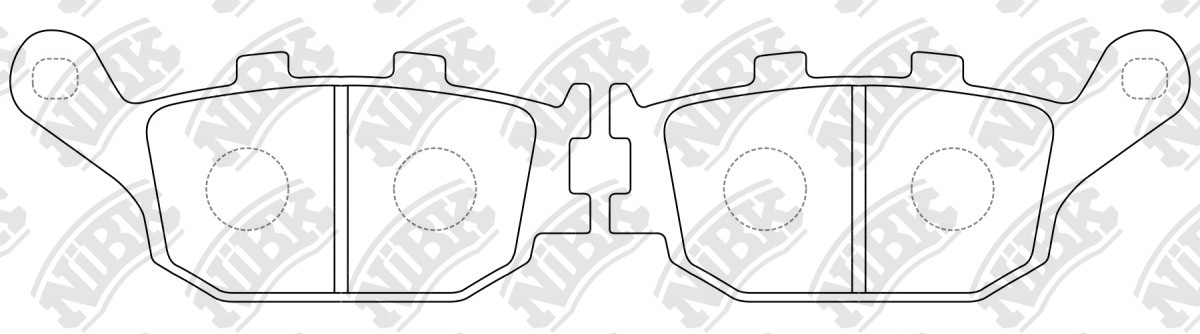

MOTORCYCLE BRAKE PADS » PM084S
Specification
Length-1
86
Width-1
39.6
Thick-1
10
TYP
R
Variation
Cross Reference
HONDA
06435 KFK 006
HONDA
06435 KFK 016
HONDA
06435 MEE 016
HONDA
06435 MFG D01
HONDA
06435 MFG D02
HONDA
43105 MV9 008
HONDA
43105 MW0 405
HONDA
43105 MW0 415
HONDA
43105-MW0-425
HONDA
43106 MV9 008
KAWASAKI
43082 0073
SUZUKI
69100 04820
SUZUKI
69100 06830
SUZUKI
69100 16851
SUZUKI
69101 44850
YAMAHA
20P-W0046-00
YAMAHA
5D9-F5805-01
YAMAHA
5SL W0046 00
YAMAHA
5VX W0046 00
| years | Eng | Eng No | BodyBody | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.04~01.05 | 400 | PM066 | PM084 | |||||
| 01.05~01.05 | 400 | PM066 | PM084 | |||||
| 01.03~01.08 | 400 | NC23 | NC39 (SF) | PM066 | PM084 | |||
| 01.06~ | 400 | NC42 | JH2(Revo) | PM066 | PM084 |
| 01.04~01.07 | 500 | PM084 |
| 01.04~01.05 | 600 | PM029 | PM084 | |||||
| 01.04~01.06 | 600 | PM029 | PM084 | |||||
| 01.07~01.09 | 600 | PM203 | PM084 | |||||
| 01.08~ | 600 | PM205 | PM084 |
| 01.91~01.94 | 600 | PM099 | PM084 | |||||
| 01.95~01.98 | 600 | PM029 | PM084 | |||||
| 01.98~01.99 | 600 | PM029 | PM084 | |||||
| 01.99~01.00 | 600 | PM066 | PM084 | |||||
| 01.03~01.04 | 600 | PM066 | PM084 | |||||
| 01.03~01.07 | 600 | PM066 | PM044PM084 | |||||
| 01.05~01.06 | 600 | PM203 | PM084 | |||||
| 01.01~01.02 | 600 | PC35E | PM066 | PM084 |
| 01.92~01.93 | 900 | PM057 | PM084 | |||||
| 01.94~01.97 | 900 | PM057 | PM084 | |||||
| 01.98~01.99 | 900 | PM066 | PM084 | |||||
| 01.00~01.01 | 900 | PM066 | PM084 | |||||
| 01.02~01.03 | 900 | PM066 | PM084 |
| 01.96~01.96 | 400 | PM084 |
| 01.95~ | 1100 | PM029 | PM084 | |||||
| 01.98~ | 1100 | PM029 | PM084 | |||||
| 01.00~ | 1100 | PM029 | PM084 | |||||
| 01.04~01.05 | 1100 | PM029 | PM084 |
| 01.02~ | 1000 | PM084 |
| 01.04~01.06 | 650 | PM119 | PM120PM084 | |||||
| 01.07~ | 650 | PM084 | ||||||
| 01.09~ | 650 | PM119 | PM084PM120 | |||||
| 01.11~ | 650 | PM119 | PM084PM120 |
| 01.11~ | 750 | PM084 |
