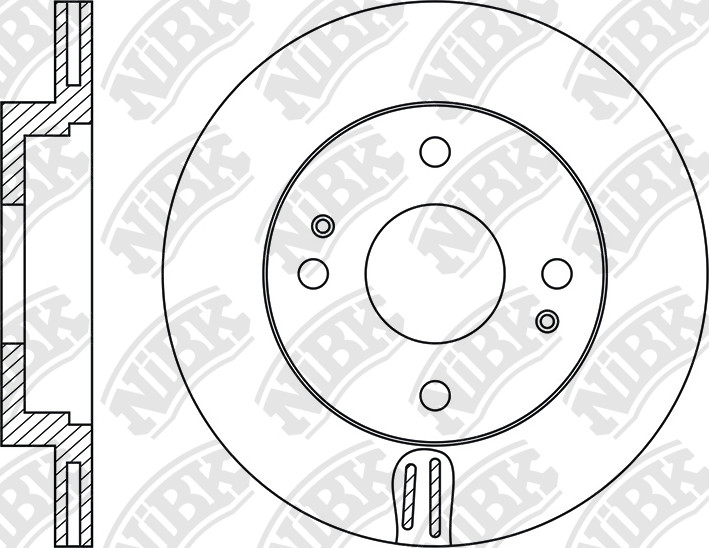

ROTOR DISC » RN1834V

Specification

Type
Vented
Outter Ø
251
Num. of holes
4
Disc Thickness (Max)
17
Height
41.7
Centering Diameter
64
Pitch Circle Ø
100
Disc Thickness (Min)
15.4
Drum Ø:
126
Structure Material
G3000
Front/Rear
Front

Cross Reference

MITSUBISHI
4615A129
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
07.13~ 1200 3A92 A13A RN1834V PN6428 DN1334H FN1267
08.12~ 1200 3A92 A13A RN1834V PN6428 FN1267
04.12~04.16 1200 3A92 A03A RN1812VRN1834V PN6428 DN1334HDN1333H FN6744FN1267
07.13~12.20 1200 3A92 A03A US RN1812VRN1834V PN6428 DN1334HDN1333H FN1267FN6744
07.13~ 1200 3A92 A03A RN1834V PN6428 DN1334H FN1267

Exemption from liability: the catalog data is advisory and can be used for reference only
