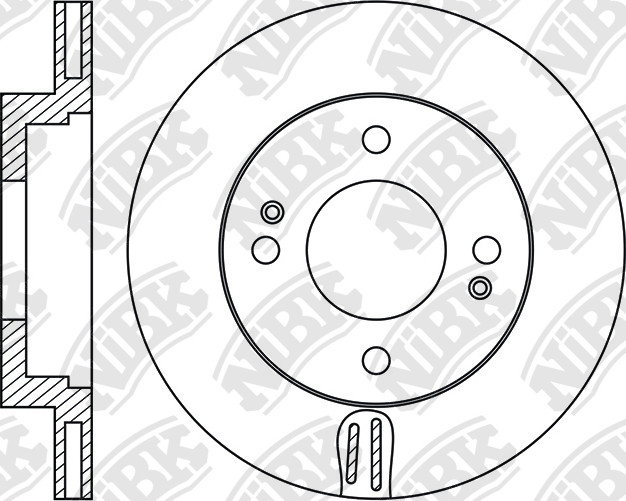

ROTOR DISC » RN1812V

Specification

Outter Ø
229
Num. of holes
4
Disc Thickness (Max)
17
Height
41.7
Centering Diameter
64
Front/Rear
Front
Type
Vented
Pitch Circle Ø
100
Drum Ø:
126
Structure Material
G3000
Disc Thickness (Min)
15.4

Cross Reference

MITSUBISHI
4615A105
MITSUBISHI
4615A175
NISSAN
40206-6A00J
NISSAN
40206-7MV1A
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
02.19~ 660 BR06 B34W RN1812VRN2459 PN2007PN2002 FN6745
02.19~ 660 BR06 B37W RN1812VRN2459 PN2007PN2002 FN6745
02.19~ 660 BR06T B35W RN1812V PN2007 FN6745
02.19~ 660 BR06T B38W RN1812V PN2007 FN6745
01.14~01.20 660 3B20 B11A RN1812VRN2459 PN2002PN2007PN2003 FN6745
03.20~ 660 BR06 B34A RN1812VRN2459 PN2007PN2002 FN6745
03.20~ 660 BR06 B37A RN1812V PN2007 FN6745
03.20~ 660 BR06T B35A RN1812V PN2007 FN6745
03.20~ 660 BR06T B38A RN1812V PN2007 FN6745
02.19~ 660 BR06 B33W RN1812VRN2459 PN2007PN2002 FN6745
02.19~ 660 BR06 B36W RN2459RN1812V PN2007PN2002 FN6745
07.12~07.20 1000 3A90 A05A RN1812V PN6428 DN1333H FN6744
04.12~04.16 1200 3A92 A03A RN1834VRN1812V PN6428 DN1333HDN1334H FN1267FN6744
04.16~ 1200 3A92 A03A RN1812V PN6428 DN1333H FN6744
11.19~ 1200 3A92 A03A RN1812V PN6428 DN1333H FN6744
07.13~12.15 1200 3A92 A03A US RN1834VRN1812V PN6428 DN1333HDN1334H FN1267FN6744
06.13~10.15 660 3B20# B21W RN2459RN1812V PN2002PN2003PN2007 FN6745FN6707
10.15~02.19 660 3B20# B21W RN2459RN1812V PN2002PN2007 FN6745
03.19~ 660 BR06T B45W RN1812V PN2007
03.19~ 660 BR06T B48W RN1812V PN2007
02.14~02.20 660 3B20# B21A RN2459RN1812V PN2007PN2002 FN6745
03.20~ 660 BR06 B44A RN1812VRN2459 PN2002PN2007 FN6745
03.20~ 660 BR06 B47A RN1812V PN2007 FN6745
03.20~ 660 BR06T B45A RN1812V PN2007 FN6745
03.20~ 660 BR06T B48A RN1812V PN2007 FN6745
06.22~ MM48 B6AW RN1812V PN2007

Exemption from liability: the catalog data is advisory and can be used for reference only
