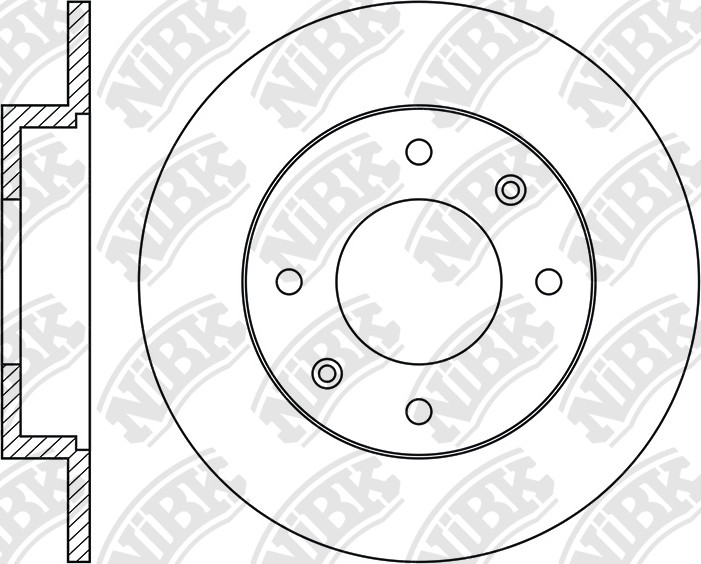

ROTOR DISC » RN1130

Specification

Type
Solid
Disc Thickness (Max)
10
Num. of holes
4
Height
40.4
Centering Diameter
76
Front/Rear
Rear
Pitch Circle Ø
114.3
Outter Ø
258
Drum Ø:
154
Disc Thickness (Min)
8
Structure Material
G3000

Cross Reference

HYUNDAI
58411-28300
HYUNDAI
58411-29310
HYUNDAI
5841129300
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
06.00~03.06 1500 G4EB XD PN2245 RN1130DN1467DN1478 PN2130FN11158
06.00~03.06 1800 G4BB XD PN2245 DN1467DN1478RN1130 FN11158PN2130
06.00~03.06 1800 G4GB XD PN2245PN0377PN0788 RN1130 PN2130
04.00~12.07 2000 D4EA XD RN1230V PN0788 RN1130 PN2130
04.00~03.06 2000 G4GC XD RN1230V PN0788 DN1478RN1130DN1467 PN2130FN11158
01.90~05.95 1600 G4CR J1 RN1230V PN0788PN0419 RN1130DN1461 PN2130FN11158
05.95~05.01 1600 G4GR J2 RN1007V PN0091PN2245 RN1130DN1467 PN2130FN11158
01.96~01.02 1600 G4GR RD PN2245 DN1467RN1130 FN11158PN2130
01.96~01.02 2000 G4GF FX RN1007V PN2245 RN1130 PN2130
05.00~03.06 1600 G4ED EUR2D RUS RN1231V PN0419 RN1130 PN2130
09.95~05.00 1600 G4GR JF3R PN2176PN2245 RN1130 PN2130FN11148
09.95~05.00 1800 G4GM JW3M PN2176PN2245 RN1130 FN11158PN2130

Exemption from liability: the catalog data is advisory and can be used for reference only
